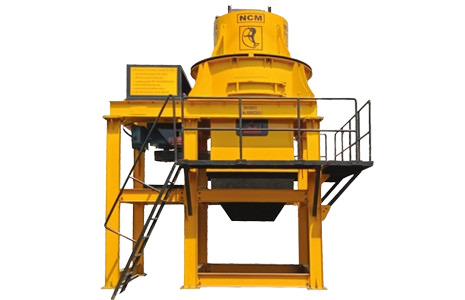

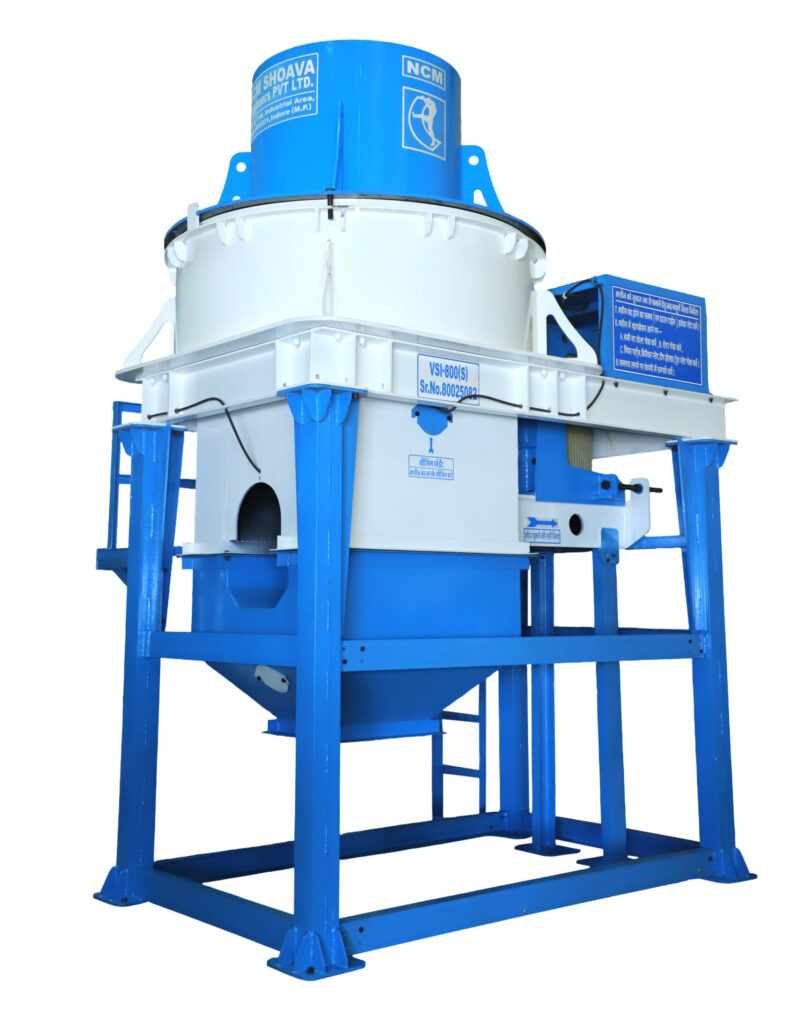

Vertical Shaft Impactor
Up to 60 TPH
| Product Description | NVI-60 | NVI-75 | NVI-120 |
|---|---|---|---|
| Maxfeed size (MM) | (-) 10 | (-) 12 | (-) 17 |
| Body Diameter (MM) | 1300 | 1800 | 1800 |
| RPM | 2190 | 1650 | 1650 |
| Electric Motor (HP) | 60 | 75 | 120 |
| Max Through put Capacity (TPH) | 20-30 | 30-40 | 40-60 |
| Output Product | Sand Only | Sand Only | Sand Only |
| Recommended Vibrating Screen Size | 16 x 5, 2 Decks | 16 x 5, 2 Decks |
Up to 120 TPH
| Product Description | NVI-150 | NVI-180 | NVI-215 |
|---|---|---|---|
| Maxfeed size (MM) | (-) 20 | (-) 25 | (-) 25 |
| Body Diameter (MM) | 1900 | 1950 | 2000 |
| RPM | 1650 | 1659 | 1400 |
| Electric Motor (HP) | 150 | 180 | 215 |
| Max Through put Capacity (TPH) | 60-80 | 80-100 | 100-120 |
| Output Product | Sand Only | Sand + Aggregate | Sand |
| Recommended Vibrating Screen Size | 20 x 5, 2 Decks | 20 x 5, 2 Decks | 20 x 5, 2 Decks |
Up to 300 TPH
| Product Description | NVI-250 | NVI-325 | NVI-425 |
|---|---|---|---|
| Maxfeed size (MM) | (-) 30 | (-) 40 | (-) 50 |
| Rotor Diameter (MM) | Multi Port upto | 5 ports design | for enhanced flow. |
| RPM | 1200 - 1800 | 1200 - 1800 | 1200 - 1800 |
| Electric Motor (HP) | 250 | 325 | 425 |
| Max Through put Capacity (TPH) | 150 - 200 | 200 -250 | 250 - 300 |
| Output Product | Sand + Aggregate | Sand + Aggregate | Sand + Aggregate |
| Recommended Vibrating Screen Size | 22 x 6, 6-3 Decks | 22 x 6, 6-3 Decks | 22 x 6, 6-3 Decks |
